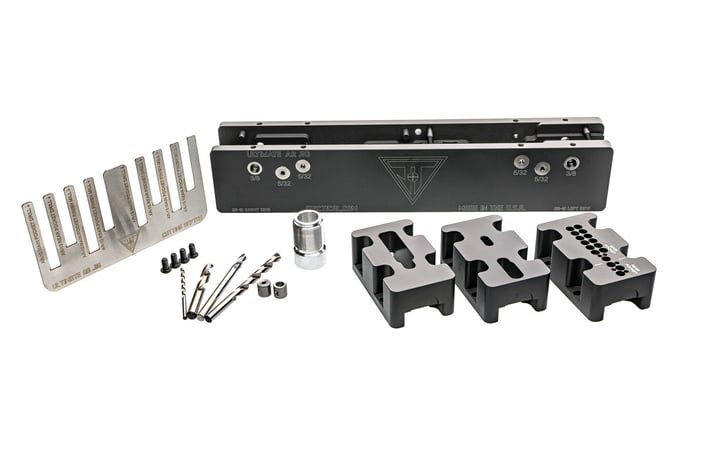

80% Lower Jig for AR-10 and AR-15 - Ultimate Jig

$189.00
Jig Options
Quantity

After considering everybody's feedback regarding jigs, we were able to develop our Ultimate Jig. With this jig, you are now able to build both AR-10 and AR-15 80% lowers. Our alignment tool that ensures the pocket is always centered in combination with our oversized top plates allows for very smooth and consistent finishing. Pair that with our press-fit stainless steel drill bushings and depth gauge (included with the jig), and you will have yourself the perfect tool to finish any top-tier AR rifle. Besides your jig and tools, the only thing needed to get your project going is a drill press or a hand drill and router.

  • 17-4 Stainless Steel Drill Bushings
  • Alignment tool
  • Depth gauge for quickly setting tool length
  • CNC-machined from solid aerospace billet aluminum
  • Laser-etched Right/Left markings and drill hole sizes for convenience
  • Individually replaceable plates
  • Type III hard coat anodized
  • Optional high-quality tooling package includes all bits required to finish your AR-15 or AR-10 lower. These are the same bits we use in our commercial CNC machines at the Juggernaut Tactical factory
  • If instructions are properly followed, the jig kit can be used to finish 25 lowers or more
  • Made in the USA
  • Not guaranteed to fit all AR-10 lowers, due to differences in manufacturing

No longer comes with flashlight due to COVID-19-related delays.

Tooling package comes with:

  • 1 ea. 0.375" Cobalt Drill
  • 1 ea. 0.3125" Cobalt Drill
  • 1 ea. 0.156" Cobalt Drill
  • 1 ea. 5/16" Carbide Endmill

Click here if you already have a jig and would like to purchase only the tooling package.

For step-by-step video instructions on finishing your AR-10 or AR-15 80% Lower with our Jig Kit, go here.

For written instructions, go here.

Note: Our jigs are not compatible with billet lowers from 80% Arms or 5D Tactical, as they are not mil-spec on the outer dimensions.

Note: Due to ATF final rule 2021R-05F (more info here), you cannot order an 80% Lower and jig-related products at the same time. If you have both in your cart, you will not be able to complete the checkout process.

Recent reviews

5 out of 5 stars

works Fine

Have completed to forged and two polymer lowers. Hade to modify jig for one of the polymer lowers, but worked gine.

Greg J.

Verified
October 7, 2024

4 out of 5 stars

Jig

This jig worked perfectly for me. The lower that I had was a little tricky to get set up in the jig but ones I had it set it was good to go. I am getting ready to do the AR-9 and hopefully that sets in perfect.

Gene M.

Verified
October 2, 2024

5 out of 5 stars

First timer

This review is for the very first AR platform I’ve built and decided to take on the final milling process as well. The jig worked flawlessly the add on tool kit provided everything needed to properly complete the milling process with exception to a router and drill. I started the milling using an older craftsman full size 1.5hp router and it worked but not well probable cause is worn bearings. I was getting a lot of chatter which shows up in the final finish. I finished the process using a 1hp Bosch palm router and it went flawlessly much easier and smother. The jig works, follow the instructions take your time and you’ll end up with fully functioning tight tolerance AR lower. No complaints but with no basis of comparison either. I’m looking forward to my next build using this jig.

Chad W.

Verified
October 1, 2024

5 out of 5 stars

Quality material

There jig and lowers are good quality the lower they are $120 or what ever they are with the stainless set screw instead of a roll pin is nice. Milled one and it came out perfect

B.R.

Verified
September 23, 2024

5 out of 5 stars

Fitment and design are perfect!

JT lowers fit perfect in their Jig. Even other brand lowers fit in this Jig with a little imagination. If you are planning to use this jig my only suggestion is to put some painters tape on all the contacting surfaces of your lower before you assemble the jig to reduce marking up your lowers painted contact points.. The steel bushings integrated into the drill holes on the jig is a nice design feature.

Sam M.

Verified
September 23, 2024

5 out of 5 stars

Great jig

Its far better than any other ive seen or used. They come out perfect every time

A.B.

Verified
September 16, 2024

5 out of 5 stars

Great product

I've used it a handful of times and it's worked great I recommend them to anyone that is interested.

T.J.

Verified
September 11, 2024

4 out of 5 stars

Good Jig some things could be better.

I really like the tool overall but for a home user I think the drill guides could be twice as thick to ensure the alignment is right on. I had to replace one side of my jig as some chips got lodged in the guide hole and mad the bit wear the hole out making it oblong and moving the trigger pin hole enough to ruin the lower with stock trigger group. a drop in trigger solved the problem. if the drill guides were hardened or replaceable like these lee valley knurled drill guide bushings it would be much better. https://www.leevalley.com/en-us/shop/hardware/jig-and-fixture-parts/40089-drill-guide-bushings

A.R.

Verified
September 9, 2024

5 out of 5 stars

Easy to use

Instructions were fairly easy to understand and skill level is moderate. The only problem is the drill holes for safety did not align exactly.

W.W.

Verified
September 9, 2024

5 out of 5 stars

Perfect fit

I had doubts at first using that tough jig. All hole was perfectly aligned and sides. Just to let others know that Daytona Tactical 80% lowers fit the Juggernaut tactical jig perfectly. Need to be carefully open minded and creatively handle this jig. Will definitely purchase future products with this company. Thanks Juggernaut Tactical for a great product. Standby for me to purchase a lot of drill and mill bits.

Alan Davis

Verified
September 3, 2024

5 out of 5 stars

Nice tool

The jig was easy to use. The trigger slot was a little loose but that is just cosmetic and won’t cause an issue.

DEAN D.

Verified
August 29, 2024

4 out of 5 stars

Alignment tool difficult

Very solid, ar 10 side difficult with dpms lower, ar 15 side awesome

Matthew i.

Verified
August 26, 2024

5 out of 5 stars

Love this Jig

Very satisfied with this jig, I have had it for a few years now and have really had a lot of fun with it. Learned a lot. Was very easy to understand and made everything very simple for me, I am not an expert, but I enjoyed making a few pretty cool custom builds.

Christopher

Verified
August 22, 2024

5 out of 5 stars

Built Like a Tank

Jig is built very well and easy to use. It's a Heavy Duty Tool to help individuals complete their 80% project.

Brian H.

Verified
August 13, 2024

5 out of 5 stars

80 to a 100

I was not confident after watching some reviews. One reveiw in particular bashing this jig literally led me to buy. This jig is perfect and dead accurate. Any imperfection was %100 my error. And I immediately noticed and produced my first %80 to %100 function.

Unlce S.

Verified
August 1, 2024

3 out of 5 stars

Lower Jig

It works and it's extremely well made and rugged. It could be better, way better, by simply redesigning it to get the cutting bit shorter. The bit is super long and easy to break at the collar... it needs to be shorter and could be. The bits are expensive and need to be ordered.

Randy L.

Verified
June 30, 2024

5 out of 5 stars

Ar jig

Solid and quality made 100 % recommended

Anonymous

Verified
June 29, 2024

5 out of 5 stars

Impressed for the most part

With a little bit of common sense or mechanical inclination, you can machine the Fire control pocket and drill the pin holes much cleaner than other jigs I’ve used. One of the more cautionary things would be to make sure that your router accepts a 5/16 end mill.

Anonymous

Verified
June 9, 2024

5 out of 5 stars

Great Jig

I used this on an ep 9mm lower and am now using it without any problems. This jig works great!

Dustin H.

Verified
June 8, 2024

5 out of 5 stars

They don't call it the ultimate jig for nothing.

Bought this jig about ten years ago now. And it is still the best jig available. Hands down love this thing. Replace your bits and she'll keep pumping them out year after year. Get one before it's too late.

T.G.

Verified
June 7, 2024

5 out of 5 stars

Best Jig around

Very good jig

Darryl D.

Verified
May 15, 2024

4 out of 5 stars

Worked as expected

Worked well as long as you proceed slowly with the router

John R.

Verified
May 13, 2024

5 out of 5 stars

AR 10 lower reciever

Absolutely quality made a great addition to a well built upper

Brian O.

Verified
May 5, 2024

5 out of 5 stars

80% Jig

Works perfect! Love it!

P.S.

Verified
May 3, 2024

5 out of 5 stars

Ultimate Jig

Works perfectly

Donald H.

Verified
April 29, 2024

5 out of 5 stars

AR 10 jig

The jig worked awesome

Chris W.

Verified
April 25, 2024

4 out of 5 stars

Jig

Nice quality

Rich P.

Verified
April 25, 2024

5 out of 5 stars

Great 80% lowers

The jig works like a champ and have yet to have any issues with it. Works perfectly every time!

THOMAS F.

Verified
April 24, 2024

5 out of 5 stars

Best jig I ever used

Easy to use and well made

JASON G.

Verified
April 23, 2024

4 out of 5 stars

Not a bad jig if your not an idiot

I have a decent drill press with an x-y vise it and had no problems. Directions could be better

Jason

Verified
April 22, 2024

5 out of 5 stars

80%

I love the jig ease of use and all parts are there to complete machining lower!. Just accuracy of drill hole placement is in need of refining!. And a descriptive instructions detailed user guide would be nice. Over all l will continue to enjoy using it!.

Mark M.

Verified
April 20, 2024

5 out of 5 stars

Accurate and simple

I have had several other jigs for doing the finishing work on the 80% AR lowers. This is simple to use and is consistently the most accurate one I have used.

Steve H.

Verified
April 19, 2024

4 out of 5 stars

Great jig

Jig is well built and sturdy when assembled

Adam Z.

Verified
April 18, 2024

5 out of 5 stars

Great Jig

The jig works great, both for 10's & 15's. One thought, the depth gauge could use a little better engineering for ease of use, and especially accuracy. It's just a bit flimsy when compared to the rest of the components.

Kelly G.

Verified
April 3, 2024

5 out of 5 stars

Amazing

Have used it for one 15 and one 10 lower. Both came out amazing. Very sturdy when put together. Highly recommend.

Jake H.

Verified
April 2, 2024

5 out of 5 stars

looked nice

should work well

TROY L.

Verified
March 26, 2024

5 out of 5 stars

80% AR-10/AR-15 ultimate jig

I have built 8 lowers with this jig and I find it very close to mil-spec and very easy to use.

Gaspar C.

Verified
March 26, 2024

4 out of 5 stars

Lower jig

One of the inserts for the trigger pin guide seems to be miss aligned. I had to fill in the drilled hole on the lower and redrill using the partially installed trigger as a guide.

Rodney

Verified
March 25, 2024

4 out of 5 stars

Great combo jig

To be honest the first lower was a test run. It turned out okay and made a nice weapon. Over the next few I realized there isn't enough surface area for the router so it would tend to lean and not make a clean cut. We put some angle iron ledges to support router and all is good. The jig itself works great for 15 and 10 lowers. If you use a full size router, stability can be an issue. I would buy again but in the state I live in, hairlip and sideshow are making it impossible to exercise our God given rights. Making what they call " ghost guns" illegal.

ACE

Verified
March 17, 2024

5 out of 5 stars

Ultimate Jig

The instructions are garbage. Clean this up please!!

Edgard H.

Verified
March 16, 2024

5 out of 5 stars

Gunsmithing hobby necessity.

One of the better jigs on the market.

Enthused q.

Verified
March 13, 2024

5 out of 5 stars

jiggy with it

honestly a brilliant piece of tooling that has been used and abused but very little wear when used properly. higher recommended, especially because the modularity between different caliber builds.

Kevin J.

Verified
March 12, 2024

5 out of 5 stars

Great Jig

I have only used it for an AR10 build so far, but it worked so well for the AR10 I plan a AR15 build soon. I saw a YouTube vid that trashed this jig. But having had machining experience in the past, it became obvious the user didn't know what he was doing. That said, I do recommend using a drill press for accuracy and ease of drilling out the big pocket. I also recomend when using the router to mill out the pockets, you find the drill hole to drop the end mill in before turning on the router. I could see a few broken end mills if you don't. I will also look at if I can drill out the trigger slot before milling. It would be helpful to have a third hand to turn on the router while you position and hold it with 2 hands. But 1 person can do it. Overall, it is very well-built and does the job nicely. I can see someone building a few dozen rifles with this jig.

Wiggledbits

Verified
March 6, 2024

5 out of 5 stars

Solid

Locks the lower in very solid and appears built to last. Very little wear.

Ian B.

Verified
March 6, 2024

5 out of 5 stars

Worked great

I have used jig twice. One ar-15 lower, and one ar-10 lower. Both came out perfect.

Thomas G.

Verified
March 3, 2024

5 out of 5 stars

works well

Used it many times now with no issues. Would and do recommend to anyone.

everett m.

Verified
March 2, 2024

5 out of 5 stars

Ultimate jig

Well worth the money too bad 80s arent a thing anymore.....

James S.

Verified
March 2, 2024

5 out of 5 stars

Great jig

Easy to use. Purchased some little LED flashlights from Harbor Freight and they work great in place of the light. Would recommend getting some backup bolts just in case of accidentally milling them.

Alex G.

Verified
March 1, 2024

5 out of 5 stars

This jig rocks on and on!

My Ultimate Jig has done an AR10 and 8 AR15's and is still in great shape. Highly recommended!

Noel S.

Verified
February 27, 2024

3 out of 5 stars

OK, but could be better.

This could use some revisions to make it better. It should come with spacers for the bottom two bolts to keep the 2 pcs parallel when tightening. I made my own and it helped a lot. Also, the 5/32" and 3/8" drilling guides could be made from a harder material and it would be worth while to make them longer. I made my own on my lathe and pressed them in to make for better alignment while drilling. The guides for milling the pockets are to tall. I ended up laser cutting flat plates to replace them and work much better and allow you to have a better view of your work piece when milling. It works to get the job done but could definitely be better.

Preston S.

Verified
February 26, 2024

5 out of 5 stars

Great Jig!

The only issue I had was not with the jig but with the tools I had on hand for the milling. The jig worked perfectly and everything worked great after buying different milling bits.

Chester P.

Verified
February 23, 2024

5 out of 5 stars

Hell yeah 👍

Goodness as far as the eye can see Love it 😁

Dale P.

Verified
February 23, 2024

5 out of 5 stars

Ultimate jig

The ultimate jig was exactly what I was looking for. One stop shop for everything AR

Douglas F.

Verified
February 22, 2024

3 out of 5 stars

Good Product

Overall this is a good product. My only disappointment is with the drill jigs for the pockets. Being made of aluminum, they tend to wear after only2 or so lowers allowing the bits to wander. It seems they would be better with a hardened insert, or the entire block being made of tool steel.

D.S.

Verified
February 22, 2024

5 out of 5 stars

Heavy duty, well designed.

Good hardware. Pieces fit well, item seems indestructible.

David K.

Verified
February 20, 2024

5 out of 5 stars

First attempt

Solid design. Simple instructions. Can't wait to complete the first template.

Robert R.

Verified
February 20, 2024

5 out of 5 stars

80% Jig

Great craftsmanship. Built to last for many projects. Customer service was helpful and answered question in a timely fashion. The shipping took around 2 weeks, but to be expected, as demand is high. Thanks for a great product.

Monte

Verified
February 20, 2024

5 out of 5 stars

Very well made jig

I was pleasantly surprised by quality and workmanship of the item. Very precise and thoughtful design.

Piotr P.

Verified
February 20, 2024

5 out of 5 stars

Works Perfectly

Jig works perfectly. It is well built and well designed. I have completed a couple so far with zero issues.

Mark D.

Verified
February 20, 2024

5 out of 5 stars

Ultimate Jig

The jig is very well constructed, simple to use and allows the use of any router. The tooling is of very good quality and replacement parts are available for a very reasonable price. The only slight issue I've had it the side pl,ate bolts are just a hair too long, but the fix for that is just a matter filing the bolts down about 1/32 of an inch so the plates can tighten down all the way. That's not a big deal and I'd rather that than the bolts being too short. My overall experience has been great and Zack has always responded to any questions I've had. I am very pleased and highly recommend this jig for anyone looking to mill an 80% AR lower. By the way I live on the east coast and it only took a week or less to have the jig as well as following orders delivered to my door step; that's the way to run a business.

Anonymous

Verified
February 19, 2024

5 out of 5 stars

Everything worked great

Everything worked great

Justin W.

Verified
February 18, 2024

5 out of 5 stars

Awesome jig

I love this jig setup it makes everything fit nice and tight after cutting. I just wish it was made to cut other brand of 80% lowers, I had to modify my two side plates to fit a lower I got somewhere else but after I did that it did a really good job.

Ethan P.

Verified
February 18, 2024

5 out of 5 stars

Jig

The jig is awesome fit is spot on done a couple receivers worked perfectly on the first one

Matt H.

Verified
February 14, 2024

5 out of 5 stars

pretty good

it will get you really close but i needed alot of fine tuning to get the trigger to fit right

El G.

Verified
February 14, 2024

5 out of 5 stars

Freedom

It works great when you put a blank in each side of the jig. I think you guys should come out with a 80% lower for a 338 lapua 😁😊 have a blessed day.

B. C.

Verified
February 14, 2024

5 out of 5 stars

ultimate jig

this jig holds up to its name. Ultimate. what a piece of art. love it.

James R.

Verified
February 14, 2024

5 out of 5 stars

Best jig for the price

Best jig you can buy honestly! Nothing beats a dual platform jig!! Just wish mine came with the flashlight like the ones before the kungflu hit

TsiJamesfpv

Verified
February 14, 2024

5 out of 5 stars

The best jig ever

I brought a jig from another website that said there jig was made to mil spec standards and this is why I am completing this review. This jig from Jtactical was made for diy people like me who likes thing easy and simple to use. My build looks and operates great, I didn't have to call customer service because this jig was easy to use.

Maurice A.

Verified
February 14, 2024

5 out of 5 stars

Works great

Product works great love it

Thomas M.

Verified
February 10, 2024

5 out of 5 stars

AR-10 lower

Great product!

Jack M.

Verified
February 9, 2024

5 out of 5 stars

Awesome!!

Affordable and fast shipping, solid fit. Definitely recommend.

John L.

Verified
February 8, 2024

5 out of 5 stars

Easy

Very easy to use. I did use a drill press for all the hole but it can just as easily be done with a hand drill. I had no issues and the finished product works great.

John C.

Verified
February 6, 2024

5 out of 5 stars

Tactical Jig

Easy to use. Such a great invention!

Allen B.

Verified
February 5, 2024

5 out of 5 stars

Awesome product

The 3 in 1 jig, best purchase possible. Heavy duty jig. Definitely A++++ The video showing, " the how to " is priceless

Jim B.

Verified
February 5, 2024

5 out of 5 stars

Jig

Won't do billet lowers. Need adapters for billet.

Joe O.

Verified
February 5, 2024

5 out of 5 stars

Cool tool

Well, this is a very cool tool, I would only recommend some instruction to be placed with it! I thought I was on a roll only to find out I had it reversed! Oops, had to purchase another 80% to get it right!

James B.

Verified
February 5, 2024
